Polycrystalline Fiber Modules: Spec, Installation & Applications

Polycrystalline fiber modules (often called PCW modules) are the next step up from standard ceramic-fiber modules when furnace temperatures stay above 1400 °C for long periods. They keep the light weight and easy handling of fiber insulation, but their crystal structure — mullite or alpha-alumina rather than glassy aluminosilicate — lets them survive service temperatures that would rapidly shrink or embrittle ordinary modules. This guide explains what makes a polycrystalline mullite fiberboard module different, how the folded and layered designs work, how to install them, and where they earn their place in high-temperature industry.

If you are comparing materials first, our article on polycrystalline wool fiber vs standard ceramic fiber breaks down the microstructure gap in more detail. For a wider temperature-rating map, see high-temperature insulation wool temperature ratings and the top 10 high temperature insulation materials hub.

What Makes Polycrystalline Fiber Modules Different

Standard ceramic-fiber modules are made from glassy aluminosilicate fibers produced by melt spinning. They are excellent up to about 1260 °C, and zirconia-containing grades reach roughly 1430 °C. Above that, the glassy phase begins to crystallize and the fibers become brittle, shrink, and lose their spring-back.

Polycrystalline modules are produced by sol-gel and calcination routes, not melt spinning. The result is a fiber made of true crystalline grains:

• Polycrystalline mullite modules — Al₂O₃ content around 72–77 %, long-term service up to 1500–1600 °C, short-term peaks to about 1700 °C.
• Polycrystalline alumina modules — Al₂O₃ content above 95 %, long-term service up to 1700 °C, short-term peaks to about 1800 °C and occasionally 1900 °C in laboratory conditions.

Because the fibers are already crystalline, they do not undergo the rapid devitrification that weakens glassy fibers. Fiber diameters are typically 5–7 µm, slightly coarser than standard 3–5 µm fibers, and the structure is denser and more resistant to hot-gas erosion. The trade-off is higher density and higher raw-material cost, which is why PCW modules are normally reserved for the hot-face layer rather than the entire lining.

Temperature, Shrinkage and Thermal Shock Performance

The clearest way to compare modules is by what happens when they stay hot.

The low shrinkage matters more than it first appears. Standard modules hold dimension well at 1000 °C, but at 1400 °C they can lose several percent in length within weeks. That opens joints, creates hot spots, and shortens lining life. PCW modules stay within a few percent shrinkage even after long exposure at 1500–1600 °C, so the lining remains tight and the shell temperature predictable. Service life in severe hot-face service is typically 10 years or more.

For board-form products in the same material family, our guide to polycrystalline mullite boards for ultra-high temperature covers the 1600–1900 °C range in more detail.

Folded vs Layered Module Construction

Fiber modules are not simple blocks of compressed blanket. They are engineered so that the compressed blanket expands after installation, closing gaps and locking the lining together.

Folded modules are made by folding a continuous blanket accordion-style into a block. They are larger and heavier than layered modules — a typical 300 mm thick folded module can weigh 10–15 kg — and they carry higher pre-compression. Installers normally handle them from the back, slide them over the anchor studs, and then cut the retaining bands. Expansion after band removal presses neighboring modules against each other.

Layered modules are built from stacked blanket layers. They are lighter, easier to cut on site, and more flexible for complex shapes such as curved kiln walls, nozzles, and transition pieces. Their expansion is distributed through the thickness, which can reduce stress at the anchor points.

Both designs rely on the same pre-compression principle: the module is held under compression during manufacture and shipping, then allowed to expand in place. A typical pre-compression ratio is 15 % or more. This expansion compensates for the small long-term shrinkage of the fiber and keeps the hot face sealed.

Installation patterns are usually either soldier-course (all modules aligned in the same direction) or herringbone/chevron (alternating directions). Chevron layouts give better mechanical interlock and are preferred for roofs, high-velocity flues, and locations with frequent thermal cycling.

Anchor Systems and Installation Sequence

The anchor system is the hidden half of module performance. Even the best fiber will fail if the anchors overheat, loosen, or are spaced too far apart.

Common anchor styles include:

• Butterfly / M anchors — embedded in the back of the module, good for flat walls and roofs.
• Corrugated or V anchors — grip the folded layers strongly, often used with folded modules.
• L-angle anchors — simple and strong, suitable for thicker modules.
• Stud-and-retainer pins — used with layered modules or for repair patches.

Anchor material must match the service temperature. General guidelines:

• Up to 600 °C: 201 or 304 stainless steel.
• 600–1100 °C: 304 or 310S stainless steel.
• 1100–1400 °C: 310S or higher nickel alloy.
• Above 1400 °C: ceramic or high-temperature alloy anchors, because even the best stainless steels lose strength.

Anchor spacing is normally 200–250 mm on centers for roofs and 250–300 mm for walls. The anchor head should sit in the cold half of the module, at least 50–75 mm from the hot face, never more than 100 mm. Anchors placed too close to the hot side oxidize, overheat, and can fall out.

A typical installation sequence is:

1. Clean the steel shell and mark anchor locations.
2. Weld or thread anchors perpendicular to the shell.
3. Slide modules over the anchors, starting at the roof and working down the walls.
4. Tighten the module retainer nuts to the specified torque.
5. Cut the shipping bands and let the modules expand against each other.
6. Fill gaps over 5 mm with ceramic fiber compensation blanket.
7. Trim the surface and inspect for loose anchors or open joints.

Because PCW modules are heavier than standard modules, two-person handling or light lifting aids are often needed for large folded blocks. The extra weight is the price of the higher density and temperature rating.

Where PCW Modules Are Used

The applications divide naturally into two groups: places where temperature exceeds what standard modules can take, and places where thermal cycling or flame impingement would destroy a standard lining quickly.

Petrochemical cracking furnaces are the classic example. Radiant sections and transfer-line heaters operate with flame temperatures that can spike above 1400 °C and high-velocity flue gases. PCW modules line the radiant walls, roof, and burner openings. Field reports from ethylene-cracker retrofits consistently show major reductions in shell temperature and fuel use — often 15–25 % lower heat loss compared with old refractory-brick linings.

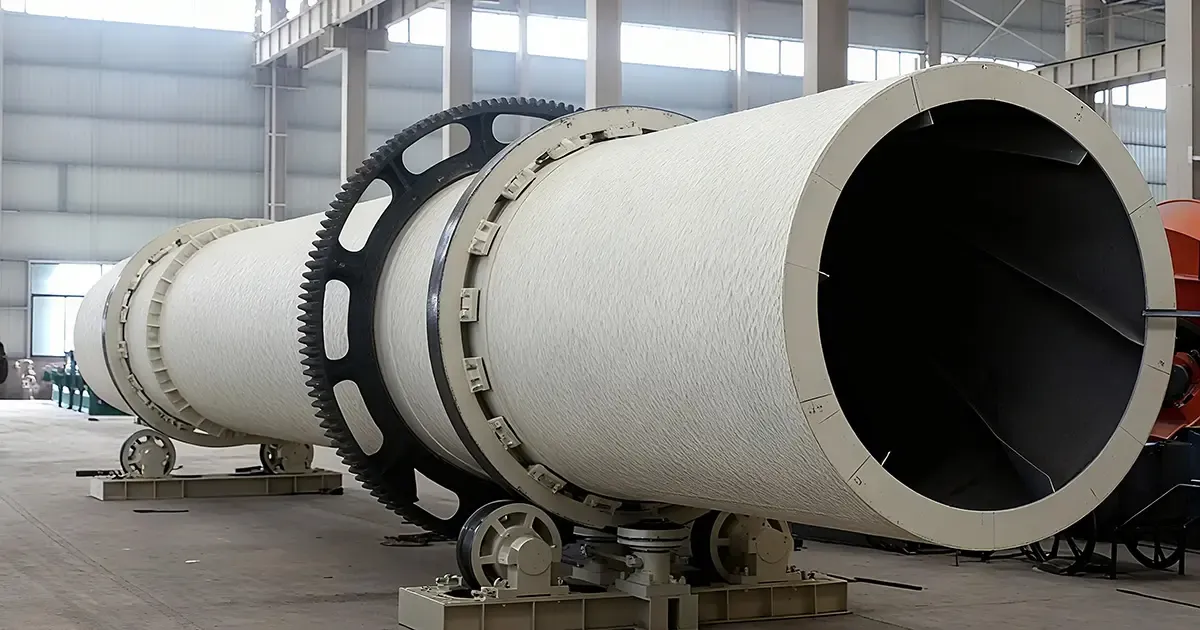

Cement and lime rotary kilns use PCW modules at the burner end and in the calcining zone, where gas temperatures and alkali attack are highest. The modules are sometimes backed by ceramic fiber blanket or standard ceramic fiber modules for a stepped insulation system. The lower thermal mass of fiber modules compared with brick also shortens heat-up time and reduces shell stress during shutdown.

Metallurgical furnaces — ladle preheaters, soaking pits, reheat furnaces, and non-ferrous melting furnaces — use PCW modules as the hot-face layer. In aluminum melting and holding furnaces, the non-wetting surface treatment prevents molten aluminum from soaking into the fibers.

Glass melting furnaces, ceramic tunnel kilns, and incinerators also use PCW modules where flame impingement, rapid cycling, or high oxygen demand rules out standard fiber. In a tunnel-kiln retrofit, replacing a dense brick lining with fiber modules can cut the lining weight by up to 90 % and reduce heat-up/cool-down time by 30–50 %.

Specification and Selection Table

Use the table below as a starting point for discussions with your supplier. Exact values depend on density, fiber grade, and surface treatment.

Note that the high-alumina grade’s short-term peak can reach about 1800 °C, and even 1900 °C in controlled laboratory exposure. Do not design continuous operation at those peak values; use them only to cover brief excursions such as start-up, flame impingement, or emergency overheating.

How to Select the Right Module

Choosing between standard, zirconia-enhanced, and polycrystalline modules comes down to four questions:

1. What is the normal operating temperature? If the hot face stays below 1200 °C, standard modules are usually the economical choice. Between 1200 °C and 1450 °C, zirconia-enhanced modules bridge the gap. Above 1450 °C, move to polycrystalline.
2. What is the peak temperature and duration? A 1350 °C peak for a few minutes is different from 1350 °C continuous. PCW modules tolerate short peaks far above their continuous rating.
3. Is there direct flame or high gas velocity? Flame impingement and high-velocity flue gases erode standard fibers. PCW modules, with their coarser crystalline fibers and higher density, last much longer.
4. What is the required lining life? If the furnace campaign must run 8–10 years or longer without reline, the higher first cost of PCW modules is usually recovered by avoiding a mid-campaign shutdown.

For the backing layer behind PCW modules, use lower-density ceramic fiber or vacuum-formed boards. The PCW module carries the hot-face duty, while the backup layer provides thermal resistance at a lower cost.

Conclusion

Polycrystalline fiber modules are not simply hotter versions of standard ceramic-fiber modules. They are a different class of material, built from crystalline oxide fibers that resist shrinkage, thermal shock, and hot-gas erosion at temperatures where glassy fibers fail. Their folded or layered construction, combined with proper anchoring and expansion compensation, creates a lining that stays in place for many years.

The decision to use them should be based on real operating conditions: continuous temperature, peak temperature, flame contact, gas velocity, and required campaign life. Where those conditions justify the investment, PCW modules outperform standard modules by a wide margin. Specify the density, fiber grade, and anchor material carefully, and the lining will deliver the long service life and stable shell temperatures that high-temperature plants need.
