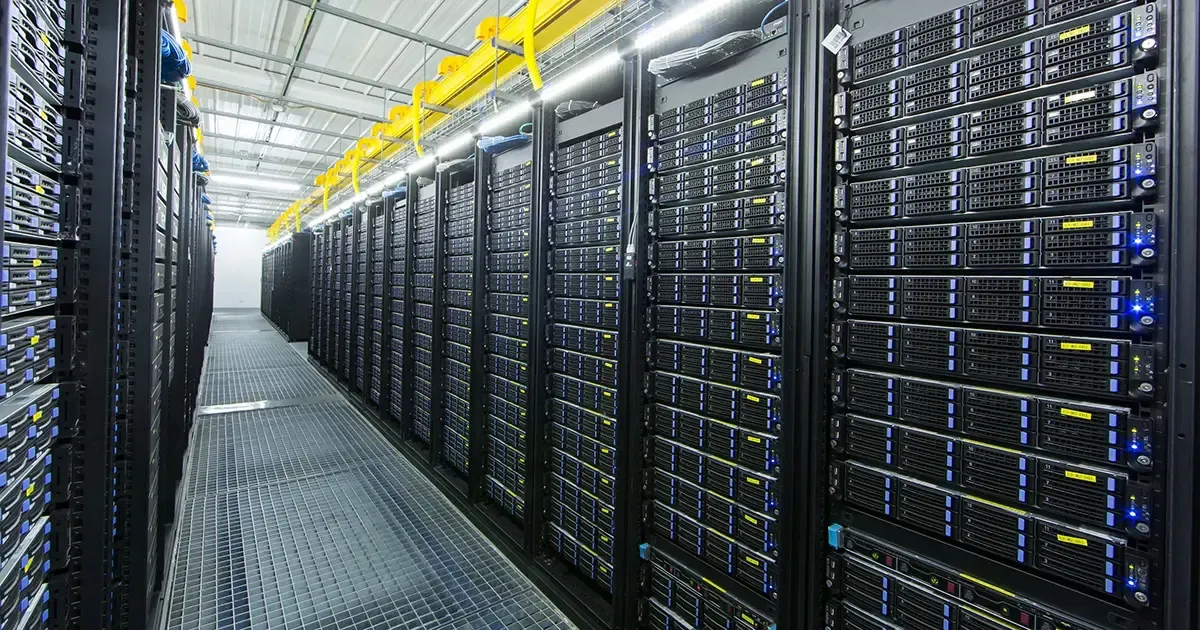

Data Center Server Room Insulation: Thermal, Fire and Acoustic Specification

Executive conclusion: insulation earns its place only when the system boundary is correct

For facility managers, operators, EPCs and installers, insulation in a data center is not a generic “wrap it and save energy” product. Its business case begins with a correct energy boundary: PUE = total electricity delivered to the data center ÷ electricity delivered to IT equipment. Cooling-plant electricity is only one non-IT contributor, so an insulation intervention cannot legitimately claim to cut “PUE by X%” without a measured baseline, a defined boundary and a control strategy.

Within that boundary, the most defensible opportunities are usually the prevention of uncontrolled heat inflow, control of latent loads and condensation, protection of delivered supply-air temperature, and reduction of compressor/CHW pump work when the thermal control surfaces are warm or humid. Cold-aisle containment, raised-floor plenums, CRAC/CRAH casings and ducts, chilled-water/condensate pipes, and the building envelope should be treated as one airflow-and-moisture problem before a product-selection problem.

Rock wool board and glass wool blanket are both inorganic fibrous insulants, but they are not interchangeable by default. Use rock wool board where the assembly needs a stable, self-supporting board—firewalls and fire-rated ceilings, cable-tray/penetration protection strategies, envelope shear/moisture nodes, and areas with significant mechanical abuse or high-temperature exposure. Use glass wool blanket where a flexible, closely conforming lining is valuable: round or rectangular ducts, CRAC/CRAH casings, plenums, vessel and equipment lagging, and large curved or irregular surfaces. Neither rock wool nor glass wool is A1 merely because of its mineral name; Euroclass A1 is a product-, configuration- and certificate-specific classification under EN 13501-1.

Acoustically, the same fibers can absorb sound energy, but an NRC, an αw and a 1/3-octave absorption curve are different deliverables. Specify the test method, mounting, thickness, density, facing and cavity before comparing numbers. In the UK and Europe, passive fire protection, sprinklers and life-safety systems remain subject to the approved design, applicable building regulations, the authority having jurisdiction (AHJ) and manufacturer/system approvals; NFPA 75, NFPA 76 and NFPA 13 are useful international reference frameworks, not automatic substitutes for local compliance.

1. The specification error to avoid: “cooling energy” is not a free-standing PUE numerator

A server room is an integrated thermal system. Heat released by IT equipment must be collected at the rack inlet/outlet, transported by air or liquid, rejected by the cooling plant, and paid for through the facility electricity meter. PUE is useful precisely because it exposes all non-IT electrical demand in the denominator of operational efficiency, not because it isolates cooling.

China’s standards-platform record of ISO/IEC 30134-2’s PUE definition states the ratio as annual data-center electricity divided by annual IT equipment electricity. The same record explicitly notes that PUE does not normalise climate and should not be used for simple direct comparison between facilities; it is most meaningful for a site’s own longitudinal improvement. The practical consequence is blunt: an insulation project should forecast cooling-plant kWh, demand kW, humidity/condensation incidents, comfort/exposure and outage risk separately, then show how those changes flow into the site’s declared PUE boundary.

The thermal win is often control, not a lower setpoint. If an uninsulated or poorly sealed chilled-water line, return-air plenum, CRAC casing or cold-aisle bulkhead admits heat, the plant must remove that extra load while fighting the setpoint. Insulation can reduce that spurious gain and reduce temperature swing. Conversely, simply lowering supply-air temperature to mask bypass or hot-air recirculation can increase fan and refrigeration work. A CFD/airside survey, trend logs and a dew-point check are worth more than a blanket “save PUE” claim.

2. Thermal pillar: insulate the paths that steal cold and create latent load

2.1 ASHRAE’s A1 envelope is a server-inlet target, not permission to chill the room

ASHRAE TC 9.9’s Thermal Guidelines for Data Processing Environments (fifth-edition family, 2021) distinguishes recommended from allowable conditions and ties them to the IT equipment inlet, not to a single room thermometer. For Class A1 equipment, the commonly cited recommended dry-bulb range is 18–27 °C. Published technical summaries of the envelope also show an allowable range wider than the recommendation—approximately 15–32 °C for A1—with humidity constrained by a recommended ≤60% RH and dew-point limits that vary by class; A1’s maximum dew point is often quoted at 17 °C in the same summaries.

That distinction changes the insulation specification:

• The recommended 18–27 °C band is an operational target for equipment inlet conditions, not a wall-surface temperature or a mandate that every point in the room be 18 °C.
• The allowable envelope is not a normal operating setpoint. It is the equipment/class tolerance boundary and must be read alongside the manufacturer’s own environmental specification.
• Dew point is the condensation constraint. A surface whose temperature falls below the local dew point can sweat even if the dry-bulb temperature is comfortably inside the A1 band.

Operators should log rack-inlet temperature and humidity, return-air temperature, chilled-water supply/return, ambient/dew point, and plant electrical demand. A cold-aisle blanket may look successful because the aisle is colder, while the rack inlet is still non-uniform; that is a control failure, not proof of efficiency.

2.2 Where insulation pays: follow the unwanted heat and the dew point

Condensation is a system failure, not just a uglier surface. A dew-point calculation must use the actual local air state, not the design room condition alone. Pipes and plenums in humid UK summer conditions, ground-floor voids, external-wall junctions and backup/standby systems that cycle after a warm soak need special attention. The lining must be compatible with cleaning, biocontrol and drainage requirements; a fibrous blanket that is wet, compressed or contaminated no longer represents its dry-labelled λ.

2.3 Rock wool board versus glass wool blanket: use a range, not a slogan

Published regulatory design tables are useful for showing that fibrous products are not a single λ number. Published regulatory design-reference tables (national energy-code values, not a product declaration) gives the following ceilings at a mean temperature of 25 °C, tested to ISO 8301 or EN 12667 (steady-state heat-flow methods): rock wool board ≤0.040 W/(m·K); glass wool board ≤0.043; glass wool blanket ≤0.045. These are not universal catalogue values, and they must not be used to rank brands.

For procurement, ask for the product’s declared thermal conductivity, λ_design (or the national calculation value after any adjustment), test mean temperature, density, thickness, service-temperature range, facing and compressive/deformation limits. Mineral wool λ typically rises as mean temperature increases; a value at 10 °C is not interchangeable with a value at 40 °C. In the low-temperature server-room context, the governing question is whether the selected thickness keeps surface temperature above dew point under the worst credible exterior/dew-point condition while respecting fire, mechanical and maintenance requirements.

The “dual-mainstream” rule is therefore simple: choose board for assembled structure and fire-critical nodes; choose blanket for conformable airside/equipment lining. It is not a fire hierarchy, and it is not a λ contest.

3. Fire pillar: A1 is a product classification, not a mineral-wool free pass

3.1 EN 13501-1 classifies a product or system, not a material family

EN 13501-1 is the European classification system for reaction to fire of construction products and building elements. Euroclasses run A1, A2, B, C, D, E and F (with floor/linear product variants and s1–s3 smoke and d0–d2 droplet subclasses). For non-flooring products, A1 classification is based on non-combustibility and calorific/heat-of-combustion criteria, with EN ISO 1182 and EN ISO 1716 among the route tests; the exact route and end-use configuration matter.

Two corollaries follow.

1. “Rock wool = A1” is an invalid procurement statement. Binders, facings, adhesives, jackets, joints, supports, composite layers and the intended end use can change the classified system. Demand the current Declaration of Performance / CE marking where applicable, the EN 13501-1 classification with s/d suffixes, the product/prefix identification, test report number and the mounting configuration.
2. A1 reaction to fire is not a fire-resistance rating. A product may be non-combustible in the reaction-to-fire sense while a wall, ceiling, duct or penetration still lacks the required fire resistance (integrity, insulation, stability) for the compartment. Likewise, an insulated cable tray or pipe sleeve cannot be selected from a generic data sheet: the whole penetration system must be assessed.

In England and Wales, fire-resistant compartmentation, cavity barriers, protected escape routes and penetration sealing are normally driven by the Building Regulations and the approved project design, with the AHJ and appointed fire engineer controlling deviations. Scottish and Northern Ireland projects have their own regulatory frameworks. For EU projects, the Construction Products Regulation / national transposition, the relevant Euroclass rules and the building’s fire strategy apply. “We used mineral wool” is never a closing argument at handover.

3.2 Cable trays, firewalls, ceilings and penetrations need system thinking

Cable tray and ladder breaks. A continuous tray is a ready-made smoke, flame and hot-gas pathway. Where a wall or floor requires compartmentation, specify a tested cable-transit or firestop system for the tray profile, cable fill, insulation/jacket types, sealant, board, collar or wrap, and both sides of the construction. Do not stuff loose fibers into a gap and call it compliant.

Firewalls and fire-rated ceilings. Board-framed mineral wool build-ups are appropriate only where the assembly has the required fire-resistance period and all fixings, joints, service penetrations, access doors and abutments are part of the approved detail. For a server room, coordinate early with raised-floor supports, CRAC returns, sprinkler/standpipe penetrations, BMS conduits and fiber trays.

Through-penetration firestopping. Each trade—HVAC, plumbing, electrical, ICT, fire detection—must leave an inspectable, repeatable system. The installer should record product, system reference, installer competence, date, photographs and as-built location. Later moves and changes are a major source of hidden nonconformance in live facilities.

Fire wrap / lagging. A fire-resistant wrap can be part of a tested pipe or cable-protection system, but its rating depends on substrate, diameter/bundle, insulation thickness, seams, anchors and end termination. It is not a substitute for a compartment wall, nor is it automatically validated by the underlying fibrous material’s A1 status.

3.3 NFPA 75, NFPA 76 and NFPA 13: reference frameworks, not a UK compliance shortcut

These documents are model codes/standards rather than a universal European legal framework. The defensible approach is a standard-of-care matrix: local statutory requirements first; project fire strategy second; operator/group standards third; international NFPA references as specified. If they conflict, stop and resolve the conflict through the designer, fire engineer and AHJ—not by choosing the more convenient sentence.

3.4 Organic foam is a conditional alternative, never a default winner

PUR/PIR and phenolic foams can offer low declared λ values in some closed-cell products, which is attractive where space is tight. But their reaction-to-fire behaviour, smoke/toxic-product performance, joint sealing, service-temperature limits, thermal-aging, permeability, and compatibility with firestop and cable-tray systems must be evaluated as a complete assembly. A lower λ does not establish compliance with an A1 requirement, nor does an A1 fibrous board automatically solve a vapour-barrier or high-humidity durability problem.

For a detailed materials comparison, see the internal resource Aerogel vs Polyurethane Foam Insulation. For the passive-fire rationale behind specifying by system evidence rather than material nickname, see Non-Combustible Insulation Systems: A1 Fire Rating. Final selection must always be referred to the project’s fire strategy and product approvals.

4. Acoustic pillar: control the spectrum, the cavity and the airflow—not just a headline NRC

4.1 NRC, αw and a single-frequency α are different languages

Sound absorption is frequency dependent. A material’s absorption coefficient α is the ratio of absorbed to incident sound energy. Reverberation-room methods such as EN ISO 354 generate random-incidence coefficients across a frequency range; the test uses the change in reverberation time with and without the specimen.

The key citation is not a marketing number but the method. Technical summaries of acoustic rating distinguish a simple arithmetic average from αw’s reference-curve comparison; αw also carries class and mounting information that a lone decimal cannot communicate. On a live project, request the full 1/3-octave curve and the installation: exposed versus perforated metal, cavity depth, resilient frame, density, thickness, facing/scrim and edge condition.

Absorption is not transmission loss. Lining a CRAC plenum may reduce internal reverberation and breakout into the room, but it will not by itself create a fire-rated or externally quiet plant room. For generator sets and outdoor plant, address intake/exhaust silencers, vibration isolation, structure-borne paths, louvre insertion loss and directional noise together with the room lining.

4.2 Practical acoustic measures in server rooms and plant areas

1. CRAC/CRAH duct wrap and liner: use a faced, durable glass wool blanket/duct-liner system sized for velocity and cleaning requirements. It can reduce breakout and airborne regenerated noise, but verify that loose fibers cannot enter the airstream and that the liner does not shed under pressure or maintenance access.
2. Plenum/static-box treatment: a resilient absorptive layer with an appropriate protective facing and cavity can reduce mid/high-frequency reflection. Protect it from trolleys, cables and standing water; a compressed mat is no longer the tested thickness.
3. Equipment blankets: flexible glass wool blankets in a robust, cleanable, mechanically retained jacket are useful on non-critical-temperature surfaces where access permits. Coordinate with guards, hot surfaces, ventilation and service clearance; never use an absorptive wrap to hide a failing bearing or vibration fault.
4. Diesel generator and plant rooms: specify acoustic absorbent walls/ceilings as part of a full noise-control design. Duct liner alone cannot solve low-frequency exhaust or structure-borne vibration. Assess planning/licence limits, receptor directions, louvres, silencer pressure drop and emergency-start conditions.
5. Airflow-noise trap: thicker absorbent layers can sometimes worsen restriction or cause flutter/duct-rush noise if cavities or facings vibrate. Test mock-ups at operating flow and static pressure, not just in a quiet lab.

5. Installation matrix: match the material to the duty, then prove the system

6. Design, installation and handover: turn “installed” into “verified”

Design gate (before purchase)

• Declare the PUE metering boundary, IT load boundary and baseline cooling energy separately; agree what insulation is expected to change.
• Establish A1/A2/B etc. requirements by element, substrate and exposure. Record s/d subclasses where specified.
• Obtain product-level DoP/CE or applicable conformity documents, test reports, SDS, installation manuals and the exact system reference for firestopping.
• Produce dew-point maps for summer ambient, humid periods, standby-to-run transitions and ground/externally adjacent surfaces.
• Define the acoustic deliverable: NRC/αw alone is insufficient; agree octave-band target, room/plant condition and measurement protocol.
• Coordinate with fire engineer, MEP, structural, BMS, ICT, FM and AHJ. Mark every penetration on a live set of drawings.

Installation gate (first fix to practical completion)

• Store off-cut and loose-fiber control per SDS; protect product from weather, compression and contamination.
• Joints are tightly butted or shiplapped per system instructions; gaps, compression and voids are recorded and remade.
• Facings, jackets, bands, pins, adhesives and anchors are the specified components—not substitutes from another system.
• Penetration seals are installed from a tested system, with correct depth, compression, annular gap treatment and both-side termination.
• No insulation blocks CRAC filters, coils, drains, float switches, actuators, access panels, sprinkler deflection, labels or cable-pull access.
• Plenum/duct lining is protected from airstream erosion and maintenance damage; wet areas are dried or replaced, not concealed.

Commissioning and handover

• Measure rack-inlet temperature/humidity across hot and cold aisles, including top/middle/bottom and end-of-row locations.
• Record chilled-water temps, ΔT, flow, compressor/fan/pump kW and plant run-hours before and after, using a stable IT load and weather-normalised rationale where possible.
• Confirm no sweating at pipes, ducts, plenum surfaces, CRAC casing and containment interfaces under the design dew-point condition.
• Test acoustic performance at the agreed plant/room conditions; review spectrum rather than one A-weighted number.
• Photograph and log every firestop, product label, batch, installer, inspection and as-built coordinate.
• Provide FM with a material-and-system register keyed to the fire strategy, so later moves do not silently breach the compartment.

7. Common misconceptions that create liability rather than efficiency

“Cooling is 40% of total energy, so insulation saves 40%.” False arithmetic. Even where cooling is a large share of facility load, insulation addresses only a portion of cooling demand—unwanted gain, distribution losses and condensation-related loads—while IT load, fans, pumps, outdoor conditions and control logic dominate the rest. Model the affected load path.

“PUE measures cooling efficiency.” No. PUE measures total facility electrical demand relative to IT electrical demand. A site can improve PUE by reducing UPS or lighting losses without touching cooling; a cooling project must report its own kWh and peak demand separately.

“ASHRAE says keep the room at 18–27 °C.” The guideline target is equipment inlet conditions, and the recommended band is not the same as the wider allowable envelope. Humidity and dew point remain independent constraints.

“All rock wool and glass wool is A1.” Incorrect. Euroclass A1 is granted to a product/configuration against EN 13501-1. Check the certificate, not the material name. Also remember A1 ≠ fire-resistance rating.

“NRC 0.90 is better than αw 0.80.” Not a valid comparison. Different methods, frequency weightings, mounting rules and reporting conventions are involved. Compare like-with-like, with full curves.

“Thicker always absorbs more and insulates more.” Usually, but not universally. Added depth can shift the resonant/absorptive behaviour, while compression, cavity, facing mass, stud spacing and exposure change the result. For thermal performance, compression, gaps and moisture are often more damaging than a modest thickness change.

“Duct liner fixes generator noise.” It may help airborne reverberation. It does not replace intake/exhaust silencers, vibration isolation, structural flanking control or compliance with local environmental noise limits.
